Description
Exir Broadcasting manufactures elbows for all our rigid lines, both for outdoor and indoor use. The outdoor models are equipped with fixed or swivel flanges. O-rings of high quality EPDM are used for gas tight flange connections. All the support insulators for the inner conductor are made of high quality teflon (PTFE) that has been controlled and adjusted before manufacturing.
Features:
- High quality low-loss material
- Easy assembly
- Customising possibilities

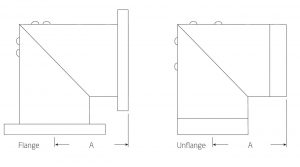

| LINE TYPE | PART NUMBER | Dim. A | MATERIAL OUTER CONDUCTOR | INDOOR/OUTDOOR |
| 7/8” unflange | R078-ELBO-AA01 | 42.5 mm | Copper | Indoor |
| 7/8” flange | 078F-ELBO-A0 | 53.0 mm | Copper and Silver-plated brass | Indoor |
| 7/8” flange | 078F-ELBO-AC00 | 53.5 mm | Silver-plated brass | Outdoor |
| 1 5/8” unflange | R158-ELBO-A0 | 42.1 mm | Copper | Indoor |
| 1 5/8” flange | 158F-ELBO-AB00 | 59.0 mm | Copper and low-loss aluminium | Indoor |
| 1 5/8” flange | 158F-ELBO-A0 | 59.0 mm | Silver-plated brass | Outdoor |
| 3 1/8” unflange | R318-ELBO-A0 | 80.0 mm | Copper | Indoor |
| 3 1/8” flange | 318F-ELBO-AB00 | 102.2 mm | Copper and low-loss aluminium | Indoor |
| 3 1/8” flange | 318F-ELBO-A0 | 102.2 mm | Silver-plated brass | Outdoor |
| RL98 unflange | RL98-ELBO-A0 | 85.0 mm | Copper | Indoor |
| 4 1/2” unflange | R412-ELBO-A0 | 87.8 mm | Copper | Indoor |
| 4 1/2” flange | 412F-ELBO-AB00 | 110.0 mm | Copper and low-loss aluminium | Indoor |
| 4 1/2” flange | 412F-ELBO-AC00 | 106.9 mm | Copper and Silver-plated brass | Outdoor |
| NAX120 unflange | R120-ELBO-A0 | 97.5 mm | Aluminium | Indoor |
| 6 1/8” unflange | R618-ELBO-A0 | 117.8 mm | Copper | Indoor |
| 6 1/8” flange | 618F-ELBO-AB00 | 149.6 mm | Copper and low-loss aluminium | Indoor |
| 6 1/8” flange | 618F-ELBO-A0 | 148.8 mm | Copper and Silver-plated brass | Outdoor |
| RL230 unflange | R230-ELBO-A0 | 157.5 mm | Aluminium | Indoor |
